AVR programmer USB, all SMD, stk500 V2 compatible, ready for use.

AvrUsb500 as mini SMD version. The components are sealed in transparent plastic. It is very small but still robust and made for day to day use. This is high-tech and quality!

AvrUsb500 SMD is probably the smallest and most powerful microcontroller programmer you can get. It is really cute. Just a bit over 4cm x 1cm.

It emulates a stk500v2 on a virtual com-port.
The main features of the avrusb500 SMD programmer are:

Fast programmer with USB interface.
Recongnizes when the connector to the target is inserted with incorrect polarity.
Recongnizes when the connector to the target is not connected.
An orange LED indicates when the programmer communicates with the target.
Works with almost any system (Windows, Linux, Mac, ...)
Ready to use.
Tiny, light, but rigit and made for day to day use.
Can programm devices from 1.8V to 5.5V thanks to integrated level shift circuits.

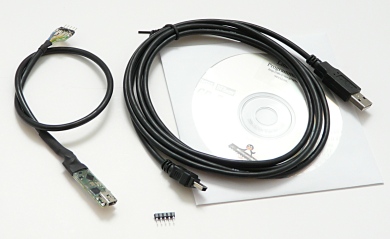

The kit includes:

The AvrUsb500 SMD programmer.
The bootable CD, tuxgraphics Linux AVR programming CD
An appropriate socket to connect the programmer cable.
A 1.5m long USB cable to connect the programmer to your computer.
A 30cm long cable to connect to the target.

This programmer is OS independent (stk500 V2 protocol) and can flash any Atmel avr microcontroller with In-System Programming capabilities. The smd components are sealed in a transparent plastic to protect them against physical impact.

The device comes with firmware loaded and is ready to use.
