All items are in stock unless otherwise noted.

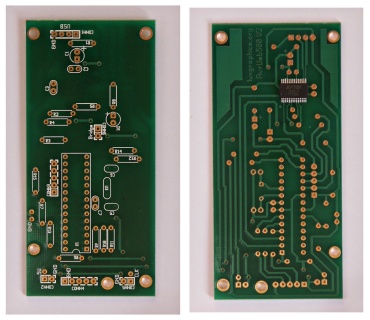

avrUSB500v2, AVR programmer, stk500 V2 compatible

Parts with professionally etched printed circuit board for the article "AvrUsb500v2 an open source AVR Programmer, stk500 V2 compatible"

This programmer is OS independent (stk500 V2 protocol) and can flash any Atmel avr microcontroller with In-System Programming capabilities. It can flash microcontrollers from 3V to 5V.

To the programmer software (avrdude, avrstudio, ...) this hardware looks just like a stk500v2 on a virtual com-port.

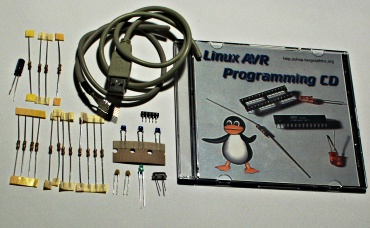

This kit includes:

A high quality printed circuit board (double sided,through-hole connections, gold plated). The FTDI SMD chip is already soldered to the board.
Bootable CD (like knoppix Linux), tuxgraphics Linux AVR programming CD
Documentation: pinout description of the components, circuit diagram, resistor color codes, drawing and photo of the PCB with all the components
Capacitors: 3x 100nF, 1x 10uF, 2x 18pF
Resistors: 1x 2.2 Ohm, 3x 4K7, 2x 220 Ohm, 4x 100 Ohm, 2x 10K , 1x 220K, 1x 680 Ohm, 1x 100k, 1x 47K
Connectors: 1x 5 pin mini sil socket
1x LED green
Crystal: 18.4320MHz
0.5m USB cable with connector already mounted
0.3m cable for the programmer interface (with 5pin sil connector, gold plated)

The CD includes the avr-gcc tool chain. The CD is independent of the operating system and software on your PC. It is a bootable CD with a graphical desktop and the complete C-Language programming environment (avr-gcc and avr-libc-1.4.3).
The CD includes (besides the knoppix booting capability):

AVRstudio 4 for windows; to use the AvrUsb500 under windows
Windows drivers for the USB interface of the AvrUsb500v2
avrdude programmer pre-compiled for MacOSX (on PowerPC and Intel)
MacOSX (on PowerPC and Intel) drivers for the USB interface of the AvrUsb500v2

Note that the CD is ready to use without prior installation. The installation of software components is optional.
CD System requirements (tuxgraphics CD version 2.X):

IDE CD-rom.
Pentium CPU (i586) with 400MHz or better, the computer should not be older than 3 years.
USB interface
Minimum 256Mb of Ram.
Note: the CD will not boot on a Mac.

Main features of the avrusb500v2 programmer:

Fast programmer with USB interface
Recongnizes when the connector to the target is inserted with incorrect polarity
Works with almost any system (Windows, Linux, Mac, ...)
Provides a 1MHz emergency clock signal to recover from incorrect fuse settings.
Easy to build. Standard components. The SMD chip is already soldered to the board.

price: 20.00 Euro [convert_currency]

Note: You need also an Atmega8 microcontroller to build the AvrUsb500v2 (the Atmega8 is not included in this kit).

Check also our simple generic development board and the tuxgraphics to atmel 10-pin or 6-pin programmer adapter further down.

Cable ties and insulation foil for avrusb500v2

This is a useful addon if you do not want to build a box around the avrusb500v2 board. The kit consists of:

5 cable ties
A strong plastic insulation foil with printed on pinout description.

The cable ties function as a pull relief for cables and tie the plastic insulation foil to the bottom of the board.

price: 0.90 Euro [convert_currency]

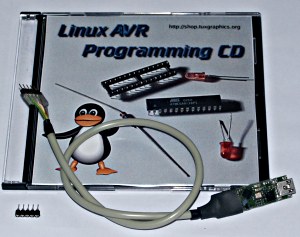

AVR programmer USB, all SMD, stk500 V2 compatible, ready for use.

AvrUsb500 as mini SMD version. The components are sealed in transparent plastic. It is very small but still robust and made for day to day use. This is high-tech and quality!

AvrUsb500 SMD is probably the smallest and most powerful microcontroller programmer you can get. It is really cute. Just a bit over 4cm x 1cm.

It emulates a stk500v2 on a virtual com-port.
The main features of the avrusb500 SMD programmer are:

Fast programmer with USB interface.
Recongnizes when the connector to the target is inserted with incorrect polarity.
Recongnizes when the connector to the target is not connected.
An orange LED indicates when the programmer communicates with the target.
Works with almost any system (Windows, Linux, Mac, ...)
Ready to use.
Tiny, light, but rigit and made for day to day use.
Can programm devices from 1.8V to 5.5V thanks to integrated level shift circuits.

The kit includes:

The AvrUsb500 SMD programmer.
The bootable CD, tuxgraphics Linux AVR programming CD
An appropriate socket to connect the programmer cable.
A 1.5m long USB cable to connect the programmer to your computer.
A 30cm long cable to connect to the target.

This programmer is OS independent (stk500 V2 protocol) and can flash any Atmel avr microcontroller with In-System Programming capabilities. The smd components are sealed in a transparent plastic to protect them against physical impact.

The device comes with firmware loaded. The firmware can, due to the device's size, not be changed. It has however configuration possibilities via serial terminal. The CD includes all needed drivers for Windows, MacOSX (on PowerPC and Intel) and a the avr-gcc development environment on a Knoppix CD.

price: 44.90 Euro [convert_currency]

Check also our simple generic development board and the tuxgraphics to atmel 10-pin or 6-pin programmer adapter further down.

ATmega8, PDIP (ATMEGA8-16PU)

The ATMega 8 AVR-RISC-Microcontroller. Package: DIL-28, 8K Flash memory, 512 bytes EEPROM, 1K S-Ram, 4.5-5.5 V, max. 16 MHz. Lead free.

price for one ATmega8: 2.10 Euro [convert_currency]

package with 3 ATmega8: 5.10 Euro [convert_currency]
(= 1.70 Euro per ATmega8)

Note: the atmega168/atmega88 microcontrollers are available on the ethernet page. The atmega8 and the atmega168/atmega88 are similar but they are not the same. You need the right controller for the right circuit.

5V mini power supply, USB, (power for experiments on the road)

This small power supply provides approximatley 5V and uses a USB port as power source.

The short circuit protection in this power supply has a highly non linear internal resistance to protect the USB port of your computer.

To just use a straight USB cable as "power supply" is a potentialy high risk for your PC. This cable has a small SMD circuit which protects your computer against "mistakes". It's short circuit protection comes in around 200mA. A bright red LED goes on as soon as a short circuit is detected.

This cable should be plugged directly into a USB port at the computer (not a passive hub).

price: 5.95 Euro [convert_currency]

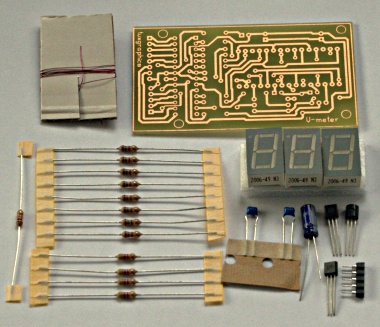

3 digit LED display, mini DVM module

Parts for: "Mini 3 digit display, a small and inexpensive voltmeter module"
The kit contains all the basic parts to build this Digital Voltmeter Module. This module can have a common ground plane for power and measured voltage. You can freely program the voltage range. The position of an optional decimal point can also be freely configured.

This kit includes the following parts:

Documentation: description of board and parts, circuit diagram
3 x bright green LED seven segment displays, 14.2mm.
8 x 180 Ohm resistor
4 x 4.7K resistor
1 x 10K resistor
1 x 10uF electrolytic capacitor
2 x 100nF capacitor
3 x BC547
Some fine enamelled wire for the wire jumpers on the PCB.
1 x 5 pin ISP connector
1 x Single sided PCB. Holes need still to be drilled. The board is coated with a resin to stay solderable and shiny. Size: 4.5x8.0cm (1.77x3.15 inch).

Note: You will also need an atmega8 microcontroller and optionally two resistors to build a voltage divider in order to adjust the input voltage range.

option: single sided board, holes need to be drilled, coated with a solderability preservant.

price: 7.90 Euro [convert_currency]

This option is out of stock. Please take the kit with the board that has already holes.

option: double sided board with holes, gold plated and components names printed on.

price: 9.55 Euro [convert_currency]

Double sided main board + board for key pad

A microcontroller based bench DC power supply unit: Small but very advanced

These are the components and the printed circuit board to build a bench power supply unit similar to the on described in the article: "A digital DC power supply unit"

This kit includes:

Documentation: pinout description of the components, circuit diagram, assembly instructions
Two professionally printed circuit boards (epoxy board): the main board (53x88 mm) and one pcb for the key-pad (27x46 mm). The single sided boards are coated with a solder flux. The double sided boards are gold plated.
Mechanical parts: 1 x M3x15 mounting screw and 1 x Insulation-pad for power transistor
Capacitors: 1 x 470μF, 3 x 0.1μF, 1 x 47nF, 1 x 47 nF or 100nF, 1x 10nF or 47nF
1 x 5 pin ISP connector
Diodes: 1 x 1N5400, 1 x 1N4004
Transistors: 1 x BD245B, 1 x BD137, 1 x BC547B, 1 x BC557B
Resistors: 12 x 4K7, 14 x 10K, 1 x 5K6, 3 x 1.5 Ohm 2W, 1 x 820 Ohm, 1 x 100 Ohm, 1 x 680 Ohm, 6 x 470 Ohm, 2 x 1K, 1 x 68K
5 x mini push button
1 x 7805

This kit contains a completely re-designed board and improved circuit (compared to the original 2005/2006 version).

Note: You will also need a tuxgraphics 16x2 display, one atmega8 microcontroller and a transformer with rectifier+capacitor (see chapter "Power sources" for details).

option: double sided gold coated main board with holes and key pad with holes drilled.

price: 20.00 Euro [convert_currency]

An interactive LCD panel for you linux PC

Parts for the article 375: "lcdproc -- LCD displays easy to use and easy to build"
This kit includes the following parts:

tuxgraphics 20x2 LCD display
2 x 33K or 47K resistor
2 x Pushbuttons, ~~one red one black~~
4 x 220 Ohm resistor
1 x 10uF electrolytic capacitor
1 x DB25 Male connector
1 x screws for the DB25 connector

Note: currently we have only 2 black push buttons (instead of one red and one black)

price: 12.50 Euro [convert_currency]

The components.

The board: single sided
but no jumper wires needed.

An electronic dice

A simple but a lot of fun!
Software download and article: "An AVR microcontroller based electronic dice"

The kit contains all the basic parts and a printed circuit board. Documentation and circuit diagram are also included.

Documentation: description of board and parts, circuit diagram
1 x 10K resistor
7 x 470 Ohm resistor
1 x 100nF capacitor
7 x LED, 3mm red.
1 x printed circuit board (45x53mm), epoxy, coated with a solderability preservant.
1 x 5 pin socket for programmer cable

Optional addon: battery box for 3xAA batteries with on/off switch. There is a small hole in the upper right corner to integrate the switch into the box.	You can just stick the board with a bit of hotmelt glue onto the battery box. Ready is the dice.
Note: You will also need an atmega8 microcontroller

Kit with single sided board, no jumpers needed, holes are drilled, gold coated

price: 4.99 Euro [convert_currency]

optional addon: 3xAA (Mignon) battery box + switch

price: 2.05 Euro [convert_currency]

A digital thermometer with I2C interface

Parts for the article07051: "A simple digital thermometer with I2C and LCD interface
The kit contains all the basic parts to build the digital thermometer with I2C communication. The board is a properly etched epoxy board.
This kit includes the following parts:

Documentation: description of board and parts, circuit diagram
3 x 10K resistor
1 x 470 Ohm resistor
2 x 4.7K resistor
1 x 100uF electrolytic capacitor
2 x 100nF capacitor
1 x LED, 3mm green.
1 x printed circuit board, epoxy, anti-oxide coating
2 x NTC, Rn=4.7k, Bval=3977
1 x 5 pin socket for programmer cable
1 x DB9 Female connector with screws and plastic case
1 x Diode BAY69 or equivalent
1 x Voltage regulator 78L05

To assemble this circuit will be fun experts and "newbies" alike.

Note: You will also need an atmega8 microcontroller and optionally a HD44780 compatible LCD display.

option: double sided board, through connected and with holes
price: 9.00 Euro [convert_currency]

A simple but flexible development board

Parts for the article 352: "Programming the AVR Microcontroller with GCC, libc 1.0.4"
This kit includes the following parts:

1 x 10K resistor
1 x 1K resistor
1 x 10uF electrolytic capacitor
0.6m of wire, different colors
1 x LED, 3mm green.
1x Dot-matrix board, epoxy, copper dots on one side, anti-oxide coating, size: 5x10 cm,
1 x 28 pin IC socket, 7.5mm wide, for ATmega8
1 x 5 pin socket for programmer cable

Our dot-matrix boards are not like normal boards! They are specially coated to not get ugly and brown when you touch them with your fingers. The board will stay shiny and solderable even if you do experiments with this kit over month and years.

price: 3.50 Euro [convert_currency]

Note: The Atmega8 Microcontroller is not included here.

Adapter cable for our programmer socket (to use any programmer hardware with our PCBs and kits)

Our programmer connector is very small, durable, easy to plug-in and fits into standard prototype breadboards. It is ideal for a temporary connection. Not all other vendors use such a nice solution.

This connector comes with a 8 cm long cable. It is just right to build your own adapter cable and re-use any existing ISP-programmer from other vendors with our hobby electronic kits.

This item includes:
- 5 pin gold plated connector with a short 8 cm cable. One outer pin is marked.

price: 2.49 Euro [convert_currency]

Adapter: tuxgraphics programmer to atmel 10pin connector (use our programmers with atmel development boards)

This is an adapter for the quite common and rather bulky 10 pin ISP-programmer plug.

This item includes:
- 10 pin programmer connector to tuxgraphics 5 pin socket
- the cable is about 6 cm long

Instead of buying it you can also build this adapter yourself: Circuit diagram, 10-pin-adapter.gif

price: 2.95 Euro [convert_currency]

Sorry, out of stock

Adapter: tuxgraphics programmer to atmel 6pin connector (use our programmers with atmel development boards)

Same as above but for the atmel 6pin connector.

Instead of buying it you can also build this adapter yourself: Circuit diagram, 6-pin-adapter.gif

price: 2.95 Euro [convert_currency]

Sorry, out of stock

Building an Ethernet interface for a avr microcontroller

We have decided to put all the parts needed for the eth_rem_dev on a separate "Ethernet" page:

ENC28J60 is a stand-alone ethernet controller
Atmega88/Atmega168
Magjack Ethernet transformer

Click here to visit the Ethernet electronics page

We have a number of very good LCD displays.
Click here to visit the LCD display page

view cart | proceed to checkout
