Scopeclock: Dutchtronix AVR Oscilloscope Clock

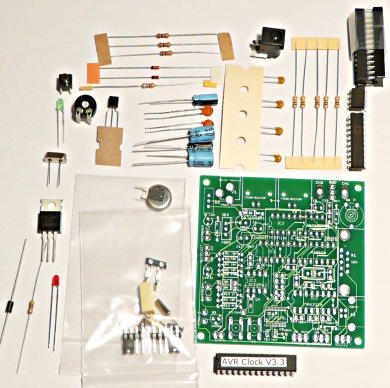

scopeclock kit
The kit.
scopeclock
   The clock in action.
A clock for any X-Y capable analog oscilloscope. Make it show the current time! This clock connects to your analog scope in X-Y mode using regular 10x or 1x probes. The clock is battery buffered.
Board size 7.6x7.6cm (3x3 inch).

The atmega168 is part of the kit and comes with software pre-loaded.
No programming needed.

This is the Dutchtronix AVR Oscilloscope Clock, Hardware 3.1, Basic kit.

Manual/FAQ:
http://dutchtronix.com/ScopeClockH3-1-Basicfaq.htm

Assembly Instructions:
http://dutchtronix.com/AssemblyH3-1-Basic.htm

Operating Instructions:
http://dutchtronix.com/OperatingH3-1-Basic.htm



Note: No other parts are needed to build this clock. The software is already pre-programmed.

price: 21.95EUR, [convert_currency]


This item is out of stock and there is currently no plan to produce it again.
