LCD displays, HD44780 compatible, alphanumeric

view cart | proceed to checkout

Shop Home

All electronic products

AVR programmer

AVR Ethernet

AVR Hobby Kits

Microcontroller & Chips

Sensors

LCD displays

AVR clock kits

Tools

Presents, Toys, Books, Linux fan, services

Calendars

Electronics Tutorials

tuxgraphics.org

All items are in stock unless otherwise noted.

This display has an ISO 8859-1 character set and can display English and European characters. ISO 8859-1 is ASCII compatible and has in addition European characters. Hardly anybody else has such a display. Most others are plain ascii character displays.

Blue LCD display 2x16, HD44780 compatible, white on blue, backlight

Module size: 84x44mm

View area: 64.5x16.4mm

Char size: 3x5.2mm

Type: STN, negative + transmissive (white on blue)

Physical interface: GND,Vcc,Vc,RS,R/W,E,DB0-DB7,Backlight

Backlight type: white LED (bright and low power, 15-25mA)

Font: ISO 8859-1 (English and European characters, also known as Latin-1). This character set is just an extension to ASCII. The display driver can of course also just send ASCII character codes. Click here for table with all characters and their codes [png image].

Supply voltage: about 5V

This display is really cool! Blue with back-light and an ISO 8859-1 character set. It has 2 lines with 16 characters. The font is white on blue. The interface is HD44780 compatible. Libraries to use this display with the Atmel AVR-Microcontroller are available for download from the tuxgraphics.org code snippets page. The display comes with a small datasheet.

price: 13.50 Euro [convert_currency]

Green LCD display 2x20, HD44780 compatible, black on green, reflective

Alphanumeric LCD display, 2 lines with 20 characters, reflective (= no background light). The interface is HD44780 compatible. Libraries to use this display with the Atmel AVR-Microcontroller are available for download from the tuxgraphics.org code snippets page. The display comes with a small datasheet.

Module size: 116x37mm

View area: 83x18.5mm

Char size: 3.2x5.55mm

Type: STN, reflective (black on green)

Physical interface: GND,Vcc,Vc,RS,R/W,E,DB0-DB7

Font: ASCII

Supply voltage: about 5V

price: 11.20 Euro [convert_currency]

Green LCD display 2x16, HD44780 compatible, black on green, reflective

Alphanumeric LCD display, 2 lines with 16 characters, reflective (= no background light), HD44780 compatible. Datasheet and pinout description are included. Libraries to use this display with the Atmel AVR-Microcontroller are available for download from the tuxgraphics.org code snippets page.

Module size: 85x30mm

View area: 62x16mm

Char size: 2.78x4.89mm

Type: STN, reflective (black on green)

Physical interface: Vcc,GND,Vc,RS,R/W,E,DB0-DB7

Font: ASCII

Supply voltage: about 5V

price: 8.00 Euro [convert_currency]

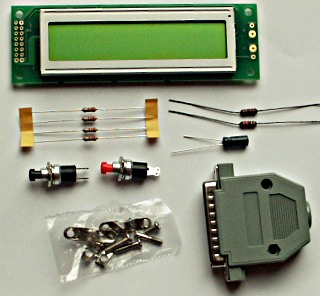

Parts for the article "lcdproc -- LCD displays easy to use and easy to build", (article 375)
This kit includes the following parts:

tuxgraphics 20x2 LCD display
2 x 33K or 47K resistor
2 x Push buttons
4 x 220 Ohm resistor
1 x 10uF electrolytic capacitor
1 x DB25 Male connector
1 x screws for the DB25 connector

Note: currently we have only 2 black push buttons (instead of one red and one black)

price: 12.50 Euro [convert_currency]
