Add-on components: ethernet based remote flower watering and monitoring system

Additional parts for the project: "Remote flower watering and monitoring"

This is an add-on to our avr ethernet boards/webserver. The circuit can be build on the dot matrix field of the version 1.4 ethernet board.

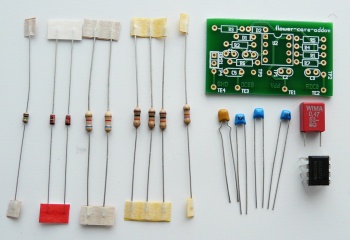

This kit includes:

Documentation with circuit diagram and assembly instructions
1x DS18S20 digital temperature sensor
1x 10nF capacitor
3x 100nF capacitor
1x 1M resistor
3x 10K resistor
2x 6K8 resistor
1x 47K resistor
1x 0.47uF capacitor
1x TS272 dual opamp
2x 1n4148 diode

Note: To build the complete electronics for the "ethernet remote flower watering and monitoring system" you will also need one of our avr ethernet boards and a 6V relay. The DS18S20 sensor is already included here.

price: 5.45 Euro [convert_currency]

Switched power supply, out: about 6.5V 400mA DC, in: 100-240V, Euro-plug

This power supply is an optional add-on to the tuxgraphics ethernet board. It is a very light switched power supply and provides about 6.5V 400mA. The input voltage can be in the range from 100V to 240V AC. In other words it works anywhere in the world however the plug is a Euro-plug (all countries on mainland Europe).

Because of the 6.5V that this power supply is ideal for use with the "remote flower watering and monitoring system". You can power the ethernet board, a relay and a small solar water pump all together from this power supply.

price: 5.50 Euro [convert_currency]

Wall socket adapter: Euro-plug to US-plug

Adapter for the above power supply to use it in America.

price: 1.00 Euro [convert_currency]
